EQUIPMENT US Site

1

1045853

Wheel Lock Assembly, Adult, Push To Lock, Black - Right

1

$61.00

C ,E

Create/add to Wishlist

1

1045854

Wheel Lock Assembly, Adult, Push To Lock, Black - Left

1

$61.00

C ,E ,H

Create/add to Wishlist

1

1045849

NLA - Wheel Lock Assembly, Hemi, Pull to Lock, Black - Right

1

N/A

D ,F ,H

Create/add to Wishlist

1

1045850

NLA - Wheel Lock Assembly, Hemi, Pull to Lock, Black - Left

1

N/A

D ,F

Create/add to Wishlist

1

1101454

Wheel Lock Assembly, Pull to Lock, Black - Right

1

$61.00

D ,F

Create/add to Wishlist

1

1101455

Wheel Lock Assembly, Pull to Lock, Black - Left

1

$61.00

D ,F

Create/add to Wishlist

2

1045847

NLA - Bracket, Mounting, Chrome - Right

1

N/A

Create/add to Wishlist

2

1045848

NLA - Bracket, Mounting, Chrome - Left

1

N/A

Create/add to Wishlist

3

1010398

Washer, Nylon (1/4 x 1/2 x 1/16")

1

7

Create/add to Wishlist

4

47376x024

Tip, Rubber Wheel Lock Handle, Black

1

$8.00

Create/add to Wishlist

5

1016588

NLA - Handle, Push, Adult, Chrome - Right

1

N/A

E

Create/add to Wishlist

5

1016589

NLA - Handle, Push, Adult, Chrome - Left

1

N/A

E

Create/add to Wishlist

5

1016590

NLA - Handle, Pull, Hemi, Chrome - Right

1

N/A

F

Create/add to Wishlist

5

1016591

NLA - Handle, Pull, Hemi, Chrome - Left

1

N/A

F

Create/add to Wishlist

6

60320X000

Locknut (1/4-28)

1

$10.00

Create/add to Wishlist

7

40157X016

NLA - Washer (1/4 x 1/2 x 1/16")

1

N/A

Create/add to Wishlist

8

16720X004

Screw, Hex Head (1/4-20 x 1-1/2")

1

$10.00

Create/add to Wishlist

9

1007017

NLA - Screw, Hex Head (1/4-20 x 1-1/4")

1

N/A

Create/add to Wishlist

10

60274X012

NLA - Screw, Hex Head (1/4-28 x 3/4")

1

2

N/A

Create/add to Wishlist

11

1015443

NLA - Shoe

1

N/A

Create/add to Wishlist

12

1016592

NLA - Link, Chrome

1

N/A

Create/add to Wishlist

13

60275X000

Locknut (1/4-20)

1

$10.00

Create/add to Wishlist

14

1011479

Bolt, Carriage (1/4-20 x 1-1/4")

1

$10.00

Create/add to Wishlist

15

16721X000

Locknut (1/4-20)

1

$10.00

Create/add to Wishlist

16

1034165

Item	Part/Kit Description	Qty/Pkg	Qty/Asbly
15	Bolt, Carriage (1/4-20 x 1-1/4")	1	2
16	Locknut (1/4-20)	1	2
	Bolt, Carriage (1/4-20 x 1-1/4")	1	2
	Locknut (1/4-20)	1	2
15	Bolt, Carriage (1/4-20 x 1-1/4")	1	2
16	Locknut (1/4-20)	1	2
13	Bolt, Carriage (1/4-20 x 1-1/4")	1	2
14	Locknut (1/4-20)	1	2
	Bolt, Carriage (1/4-20 x 1-1/4")	1	2
	Locknut (1/4-20)	1	2

NLA - Hardware, Attaching Kit (Pair)

1

N/A

B

Create/add to Wishlist

16

1017677

Item	Part/Kit Description	Qty/Pkg	Qty/Asbly
4	Bolt, Carriage (1/4-20 x 1-1/4")	1	2
5	Nut, Hex Flang (1/4-20)	1	2
4	Bolt, Carriage (1/4-20 x 1-1/4")	1	2
5	Nut, Hex Flang (1/4-20)	1	2
4	Bolt, Carriage (1/4-20 x 1-1/4")	1	2
5	Nut, Hex Flang (1/4-20)	1	2
	Bolt, Carriage (1/4-20 x 1-1/4")	1	2
	Nut, Hex Flang (1/4-20)	1	2
	Bolt, Carriage (1/4-20 x 1-1/4")	1	2
	Nut, Hex Flang (1/4-20)	1	2
4	Nut, Hex Flang (1/4-20)	1	2
5	Bolt, Carriage (1/4-20 x 1-1/4")	1	2
15	Bolt, Carriage (1/4-20 x 1-1/4")	1	2
16	Nut, Hex Flang (1/4-20)	1	2
4	Bolt, Carriage (1/4-20 x 1-1/4")	1	2
5	Nut, Hex Flang (1/4-20)	1	2
15	Bolt, Carriage (1/4-20 x 1-1/4")	1	2
16	Nut, Hex Flang (1/4-20)	1	2
3	Bolt, Carriage (1/4-20 x 1-1/4")	1	2
4	Nut, Hex Flang (1/4-20)	1	2
13	Bolt, Carriage (1/4-20 x 1-1/4")	1	2
14	Nut, Hex Flang (1/4-20)	1	2
15	Bolt, Carriage (1/4-20 x 1-1/4")	1	2
16	Nut, Hex Flang (1/4-20)	1	2
4	Bolt, Carriage (1/4-20 x 1-1/4")	1	2
5	Nut, Hex Flang (1/4-20)	1	2
4	Bolt, Carriage (1/4-20 x 1-1/4")	1	2
5	Nut, Hex Flang (1/4-20)	1	2
15	Bolt, Carriage (1/4-20 x 1-1/4")	1	2
16	Nut, Hex Flang (1/4-20)	1	2
4	Bolt, Carriage (1/4-20 x 1-1/4")	1	2
5	Nut, Hex Flang (1/4-20)	1	2
4	Bolt, Carriage (1/4-20 x 1-1/4")	1	2
5	Nut, Hex Flang (1/4-20)	1	2
4	Bolt, Carriage (1/4-20 x 1-1/4")	1	2
5	Nut, Hex Flang (1/4-20)	1	2
4	Bolt, Carriage (1/4-20 x 1-1/4")	1	2
5	Nut, Hex Flang (1/4-20)	1	2
	Nut, Hex Flang (1/4-20)	1	2
5	Bolt, Carriage (1/4-20 x 1-1/4")	1	2
5	Nut, Hex Flang (1/4-20)	1	2
	Bolt, Carriage (1/4-20 x 1-1/4")	1	2
	Nut, Hex Flang (1/4-20)	1	2
4	Nut, Hex Flang (1/4-20)	1	2
4	Bolt, Carriage (1/4-20 x 1-1/4")	1	2
5	Nut, Hex Flang (1/4-20)	1	2
	Bolt, Carriage (1/4-20 x 1-1/4")	1	2
	Nut, Hex Flang (1/4-20)	1	2
	Nut, Hex Flang (1/4-20)	1	2
	Bolt, Carriage (1/4-20 x 1-1/4")	1	2
	Bolt, Carriage (1/4-20 x 1-1/4")	1	2
4	Bolt, Carriage (1/4-20 x 1-1/4")	1	2
5	Nut, Hex Flang (1/4-20)	1	2
4	Bolt, Carriage (1/4-20 x 1-1/4")	1	2
	Bolt, Carriage (1/4-20 x 1-1/4")	1	2
	Nut, Hex Flang (1/4-20)	1	2

Kit, Hardware, Wheel Lock (Pair)

1

$13.00

Create/add to Wishlist

00078X021

Instruction Sheet, Wheel Lock

1

A

Create/add to Wishlist

1058900

Wheel Lock Extension Handle Assembly, Black (8")

1

$50.00

A ,G

Note Code	Definition
A	Not Shown.
B	Includes Items 14-15. 1034165 in Zinc Finish is NLA. Use part number 1017677 in Black finish as a replacement.
C	Includes Items 2-13.
D	Includes Items 2-13
E	Adult.
F	Hemi/Super Hemi.
G	Includes: 1 each Extension Handle and Rubber Tip. Chrome is No Longer Available.
H	NLA. See part numbers 1101454 and 1101455 as replacements.

Maximum of three products are allowed for comparison.

Maximum of three products are allowed for comparison.

Maximum of three products are allowed for comparison.

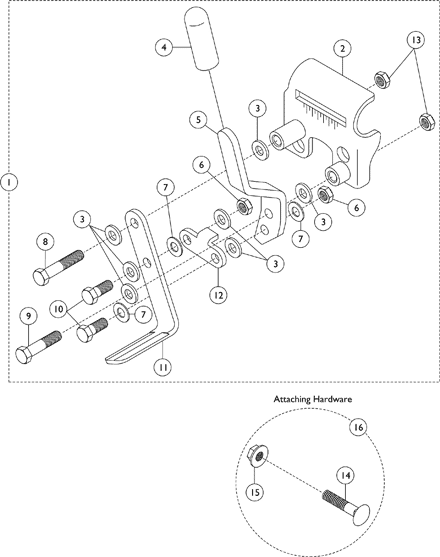

Wheel Locks - Link-Pivot Style - Chrome Chairs (Before 9/1/05)
