Crossbraces & Crossbrace Hardware - 9000SL (Before 7/12/99)

Print this page

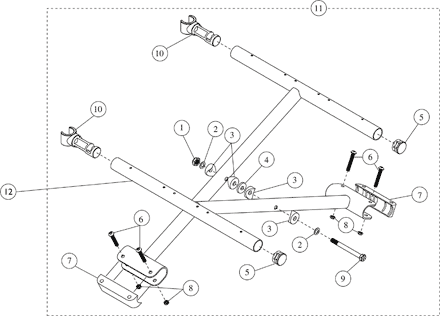

Crossbrace and Crossbrace Hardware - 9000SL Before 7/12/99

Click to Enlarge

Item	Part/Kit	Part/Kit Description	Qty/Pkg	Qty/Asbly	MSRP	View Parts Notes
1	60264X001	Locknut (5/16-24)	1	1	$8.00		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
2	1016652	Washer (5/16 x 9/16 x 1/32")	1	2	$10.00		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
3	1016263	Spacer, Coved (3/4 x 1 x 1/2")	1	4	$9.20		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
4	1016301	Washer, Nylon (5/16 x 7/8 x 1/8")	1	1	$10.00		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
5	1029501	Plug Button, Black (1")	1	2	$7.20		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
6	1008495	Screw, Socket Button Head (1/4-20 x 1-1/2")	1	4	$10.00		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
7	1012172	NLA - Clamp, Saddle	1	2	N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
8	60275X000	Locknut (1/4-20)	1	4	$10.00		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
9	1016261	Screw, Hex Head (5/16-24 x 3-1/4")	1	1	$10.00		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
10	1055419	NLA - Guide, Seat	1	2	N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
11	1054887	NLA - Kit, Crossbrace Hardware	2	1	N/A	A	Create/add to Wishlist Create/add to Wishlist New Wishlist Description
12	1090818	NLA - Crossbrace w/o Hardware, Black - Right/ Left (16" W)	1	1	N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
12	1090820	NLA - Crossbrace w/o Hardware, Black - Right/ Left (18" W)	1	1	N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
12	1090822	NLA - Crossbrace w/o Hardware, Black - Right/ Left (20" W)	1	1	N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
	1019027	Kit, Extension, Seat (2")	1	1	$47.00	B	Create/add to Wishlist Create/add to Wishlist New Wishlist Description

Assembly Part Notes

Note Code	Definition
A	Includes items 1-10.
B	Not Shown.

Catalog Literature

Parts Books for 9000SL 9000XT 9000XDT 9000XT Recliner
