Forks & Hardware - 9000XDT - Adult/Hemi and Tall

Print this page

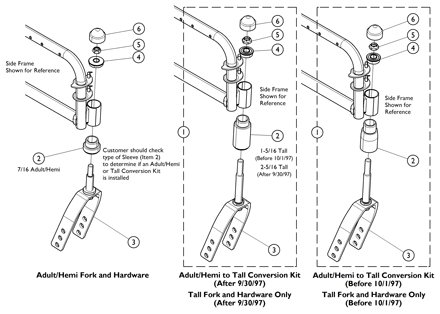

Forks and Hardware - 9000XDT - Adult/Hemi and Tall

Click to Enlarge

Item

Part/Kit

Part/Kit Description

Qty/Pkg

Qty/Asbly

MSRP

View Parts Notes

1070843

NLA - Kit, Conversion, Chrome, Adult/ Hemi to Tall (Pair)

N/A

A ,D

Create/add to Wishlist

1075042

NLA - Kit, Conversion, Chrome, Adult/ Hemi to Tall (Pair)

N/A

A ,E

Create/add to Wishlist

1066590

NLA - Sleeve w/ Bearing, Chrome, Tall

N/A

B ,D

Create/add to Wishlist

1180828

Sleeve w/ Bearing, Silver Vein (71P), Tall

$30.00

B ,E

Create/add to Wishlist

1074930

Sleeve w/ Bearing, Black, Adult/Hemi

$15.00

Create/add to Wishlist

1065589

Fork and Stem Assembly, Adult/Hemi

$79.00

Create/add to Wishlist

1062585

Fork and Stem Assembly, Tall

$77.00

Create/add to Wishlist

1001801

Bearing, Flange (1/2")

$8.00

Create/add to Wishlist

1065530

Bearing, Flange (7/16")

$11.00

Create/add to Wishlist

1001979

Locknut (1/2-20)

$10.00

Create/add to Wishlist

20225X000

Locknut (7/16-20)

$10.00

Create/add to Wishlist

1001843

Cap, Head Tube, Black

$8.00

Create/add to Wishlist

1037422

Item	Part/Kit Description	Qty/Pkg	Qty/Asbly
	Spacer, Wheel Lock Shoe (1-45/64")	1	2
	Screw, Set Socket Cup Point (#8-32 x 3/16")	1	4
	Spacer, Wheel Lock Shoe (1-45/64")	1	2
	Screw, Set Socket Cup Point (#8-32 x 3/16")	1	4
18	Spacer, Wheel Lock Shoe (1-45/64")	1	2
19	Screw, Set Socket Cup Point (#8-32 x 3/16")	1	4
18	Spacer, Wheel Lock Shoe (1-45/64")	1	2
19	Screw, Set Socket Cup Point (#8-32 x 3/16")	1	4
	Spacer, Wheel Lock Shoe (1-45/64")	1	2
	Screw, Set Socket Cup Point (#8-32 x 3/16")	1	4
14	Spacer, Wheel Lock Shoe (1-45/64")	1	2
15	Screw, Set Socket Cup Point (#8-32 x 3/16")	1	4
7	Spacer, Wheel Lock Shoe (1-45/64")	1	2
8	Screw, Set Socket Cup Point (#8-32 x 3/16")	1	4
7	Spacer, Wheel Lock Shoe (1-45/64")	1	2
8	Screw, Set Socket Cup Point (#8-32 x 3/16")	1	4
18	Spacer, Wheel Lock Shoe (1-45/64")	1	2
19	Screw, Set Socket Cup Point (#8-32 x 3/16")	1	4
	Spacer, Wheel Lock Shoe (1-45/64")	1	2
	Screw, Set Socket Cup Point (#8-32 x 3/16")	1	4
	Spacer, Wheel Lock Shoe (1-45/64")	1	2
	Screw, Set Socket Cup Point (#8-32 x 3/16")	1	4
	Spacer, Wheel Lock Shoe (1-45/64")	1	2
	Screw, Set Socket Cup Point (#8-32 x 3/16")	1	4
	Spacer, Wheel Lock Shoe (1-45/64")	1	2
	Screw, Set Socket Cup Point (#8-32 x 3/16")	1	4

Kit, Wheel Lock Shoe Spacer, 22" Rear Wheels (Pair)

$44.00

Create/add to Wishlist

1070845

NLA - Instruction Sheet

N/A

Create/add to Wishlist

1075041

Instruction Sheet

Create/add to Wishlist

1131189

Package, Head Tube Cap

$36.00

Create/add to Wishlist

Assembly Part Notes

Note Code	Definition
A	Includes items 2 - 6 and Instruction Sheet. The side frames also need to be changed when converting from an adult/hemi seat to floor to the tall seat to floor.
B	Used with Tall Chairs only.
C	Used with Adult/Hemi Chairs only.
D	Before 10/1/97
E	10/1/97-4/11/13 Chrome replaced Black. After 4/11/13 Chrome was replaced with Silver Vein (71P). Currently their is not a Conversion Kit in Silver Vein available to replace item #1 1075042. Item #'s 2-6 and Instruction Sheet must be ordered separately.
F	Chairs with U2222 rear wheels will also need wheel lock shoe spacer with hardware, #1037422.
G	Not shown.
