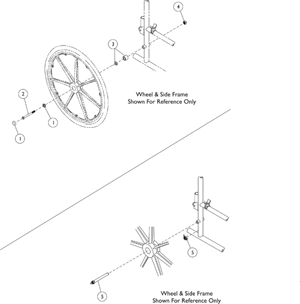

Wheels - Rear - Hardware

Print this page

Click to Enlarge

Item

Part/Kit

Part/Kit Description

Qty/Pkg

Qty/Asbly

MSRP

View Parts Notes

See Chart

Added to Cart

Part Number

Description

Note-A

1027600- NLA

#1 Hub Cap, Black

Note-B ,C

1047943

Part/Kit Description	Qty/Pkg	Qty/Asbly
Washer, Caplugs (15/32" I.D. x 1-3/32" O.D.)	1	1
Cap, Hub, Black	1	1

MSRP: $8.00

#1 Hub Cap w/Hardware, Black

Create/add to Wishlist

See chart-note

Chart Part Notes

Chart Code	Definition
A	Before 11/19/98.
B	After 11/20/98.
C	Includes: (1) Caplug washer #1016289 and (1) Caplug cap #1016291.

Rear Wheel Hub Cap

N/A

See Chart

Added to Cart

Description

Hardware Kit

#2 Axle

#3 Spacer

#4 Locknut

Arm Style 78 and 88

Note-A ,B

1034106

Part/Kit Description	Qty/Pkg	Qty/Asbly
Screw, Hex Head (7/16-20 x 4-1/2")	1	1
Locknut (7/16-20)	1	1

MSRP: $15.00

47203X029

MSRP: $10.00

N/A

1045608

MSRP: $10.00

Arm Style 18, 19, 19JY, 28, 29 and 29JY

Note-A ,B ,D

1034109

Part/Kit Description	Qty/Pkg	Qty/Asbly
Spacer (7/16 x 5/8 x 1/2")	1	1
Bolt, Hex Head Cap (7/16-20 x 5-1/8")	1	1
Locknut (7/16-20)	1	1

MSRP: $21.00

1085454

MSRP: $8.00

1022671

MSRP: $10.00

1045608

MSRP: $10.00

Arm Style 79, 79JY, 89 and 89JY

Note-A ,B

1110319

Part/Kit Description	Qty/Pkg	Qty/Asbly
Bolt, Hex Head Cap (7/16-20 x 4-3/4")	1	1
Locknut (7/16-20)	1	1
Spacer (7/16 x 5/8 x 3/16")	1	1

MSRP: $12.00

47203X025

1026101

MSRP: $10.00

1045608

MSRP: $10.00

9000 XT Recliner

Note-A ,C

1067777

MSRP: $14.00

1028554- NLA

1079153- NLA

60030X000

MSRP: $10.00

Create/add to Wishlist

See chart-note

Chart Part Notes

Chart Code	Definition
C	Includes 5/8" Axle.
D	Not Shown. Components contained in Kit Hardware 1034109 must be ordered separately. Order part #1085454 Bolt, 1045608 Locknut, 1022671 Spacer.
A	Includes items 2, 3 and 4.
B	Includes 7/16" Axle.

Rear Wheel Attaching Hardware

N/A

See Chart

Added to Cart

Description

Part Number

#5 Quick Release Axle - Conventional Arms

1034113

Part/Kit Description	Qty/Pkg	Qty/Asbly
Axle, Quick Release (7/16" x 5-7/16")	1	1
Spacer (7/16 x 5/8 x 1/2")	1	1
NLA - Label, Warning	1	1

MSRP: $73.00

#5 Quick Release Axle - Space Saver Arms

1034114

Part/Kit Description	Qty/Pkg	Qty/Asbly
Axle, Quick Release (7/16" x 4-1/2")	1	1
NLA - Label, Warning	1	1

MSRP: $73.00

Create/add to Wishlist

See chart-note

Chart Part Notes

Chart Code	Definition
B	Includes 7/16" Axle.
A	Includes (1) each quick release axle and warning label.

Quick Release Axle Rear Wheel Hardware

N/A

Catalog Literature

Parts Books for 9000SL 9000XT 9000XDT 9000XT Recliner
