EQUIPMENT US Site

1

1040060

Tip, Plastic, Black

1

$8.00

Create/add to Wishlist

2

1031235

NLA - Handle, Release, Chrome - Right

1

N/A

A

Create/add to Wishlist

2

1031236

NLA - Handle, Release, Chrome - Left

1

N/A

A

Create/add to Wishlist

2

1033305

NLA - Handle, Release, Chrome - Right

1

N/A

A ,C

Create/add to Wishlist

2

1033306

NLA - Handle, Release, Chrome - Left

1

N/A

A ,C

Create/add to Wishlist

1087698

NLA - Handle, Release, Chrome - Right

1

N/A

G

Create/add to Wishlist

1087699

NLA - Handle, Release, Chrome - Left

1

N/A

G

Create/add to Wishlist

3

1031354

NLA - Support, Elevating - Right

1

N/A

Create/add to Wishlist

3

1031355

NLA - Support, Elevating - Left

1

N/A

Create/add to Wishlist

4

1030948

Screw, Slotted Truss Head (5/16-24 x 1-1/2")

1

$10.00

Create/add to Wishlist

5

1095433

Plug Button, Black (7/8")

1

$10.00

Create/add to Wishlist

6

1107321

Nut, Low Cap (5/16"-24)

1

$10.00

Create/add to Wishlist

7

04528X002

Bracket, Release, Black

1

$8.00

Create/add to Wishlist

8

47330X003

Spacer (5/16 x 1/2 x 3/8")

1

$10.00

Create/add to Wishlist

9

42326X001

Bar, Ratchet

1

$8.00

Create/add to Wishlist

10

1040831

Ring, Snap

1

$8.00

Create/add to Wishlist

11

7930310

NLA - Washer, Nylon (5/16 x 11/16 x 1/16")

25

1

N/A

Create/add to Wishlist

12

1037125

Cam, Legrest

1

$8.00

Create/add to Wishlist

13

1037485

Spring, Release

1

$8.00

Create/add to Wishlist

14

1014807

Screw, Hex Head (5/16-24 x 3-1/4")

1

$10.00

Create/add to Wishlist

15

04526X019

Plate, Legrest Pad

1

$9.00

Create/add to Wishlist

16

1091220

Spacer, Legrest

1

$10.00

Create/add to Wishlist

17

47328X003

Bushing, Pivot (5/16 x 7/16 x 7/8")

1

$10.00

Create/add to Wishlist

18

48823X008

Spring, Leaf

1

$9.00

Create/add to Wishlist

19

1025104

Bracket, Legrest, Chrome

1

$16.00

Create/add to Wishlist

20

11232X009

Bolt, Lug (5/16-24 x 1-3/8")

1

$10.00

Create/add to Wishlist

21

60264X001

Locknut (5/16-24)

1

3

$8.00

Create/add to Wishlist

22

1031358

NLA - Tube, Support, Legrest, Elevating, Chrome - Right

1

N/A

Create/add to Wishlist

22

1031359

NLA - Tube, Support, Legrest, Elevating, Chrome - Left

1

N/A

Create/add to Wishlist

23

1096773

Nut, Push Dome (5/16")

1

$10.00

Create/add to Wishlist

24

1031356

NLA - Legrest Support Tube Assembly, Hemi, Chrome - Right

1

N/A

B

Create/add to Wishlist

24

1031357

NLA - Legrest Support Tube Assembly, Hemi, Chrome - Left

1

N/A

B

Create/add to Wishlist

25

1037126

Handle, Release

1

$10.00

Create/add to Wishlist

67005X000

Rivnut (#10-32)

1

$10.00

C ,E

Create/add to Wishlist

1030979

Screw, Phillips Pan Head Tap (#10-32 x 3/4")

1

$10.00

C ,E

Create/add to Wishlist

1022874

Bumper

1

$8.00

C ,E

Create/add to Wishlist

1046328

NLA - Kit, Ratchet

2

1

N/A

D ,E

Create/add to Wishlist

1027095

Plug Button, Black (7/8")

1

$9.20

C ,E

Create/add to Wishlist

7930359

NLA - Package, Screw, Phillips Pan Head (#10-32 x 1/2")

25

2

N/A

C ,E

Create/add to Wishlist

1008935

Spring, Release - Right

1

$10.00

C ,E

Create/add to Wishlist

1008936

Spring, Release - Left

1

$10.00

C ,E

Create/add to Wishlist

26

See Chart

Added to Cart

Prior Model Number		Current Model Number		Chair Width		Right Side		Left Side
H904 - Chrome		T944 A/C - Chrome		14-22"		Note-A 1031360- NLA		Note-A 1031361- NLA

Create/add to Wishlist

See chart-note

Chart Part Notes

Chart Code	Definition
A	Calf pad is sold separately and is not included in support assemblies after 7/97.

Legrest Support Assembly - H904, T944A/C

N/A

F

Note Code	Definition
A	Due to design change, for all chairs built prior to 10/1/00 it is suggested that release handles be replaced in pairs.
B	Includes items 2 and 3.
C	Before 10/01/00 only.
D	Includes Items 1, 6 thru 14, and 25
E	Not shown.
F	Includes items 1 thru 25.
G	Not Shown. Order this item when ordering chair with Cyclical Drive only.

Maximum of three products are allowed for comparison.

Maximum of three products are allowed for comparison.

Maximum of three products are allowed for comparison.

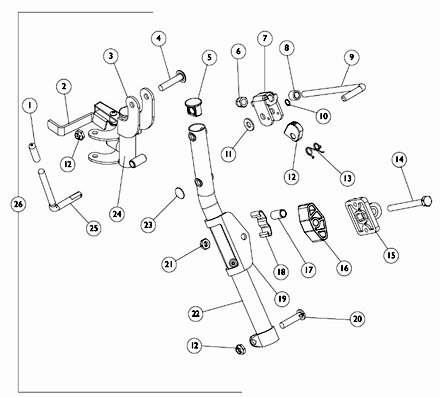

Front Riggings - Legrest Supports - H904, T944A/C
