1

04526X019

Plate, Legrest Pad

1

$9.00

Create/add to Wishlist

2

1025104

Bracket, Legrest, Chrome

1

$16.00

Create/add to Wishlist

3

1037125

Cam, Legrest

1

$8.00

Create/add to Wishlist

4

1022848

Tube, Slide, Articulating, Chrome - Right

1

$30.00

Create/add to Wishlist

4

1022849

Tube, Slide, Articulating, Chrome - Left

1

$31.00

Create/add to Wishlist

5

1027377

Washer (#20)

1

$10.00

Create/add to Wishlist

6

1107321

Nut, Low Cap (5/16"-24)

1

$10.00

Create/add to Wishlist

7

11232X009

Bolt, Lug (5/16-24 x 1-3/8")

1

$10.00

Create/add to Wishlist

8

40363X000

Hex Nut (3/8"-16)

1

3

$10.00

Create/add to Wishlist

9

1022866

NLA - Screw, Socket Button Head (3/8-16 x 3/4")

1

2

N/A

Create/add to Wishlist

10

1049527

Washer, Nylon (3/8 x 3/4 x 1/16")

1

2

$10.00

Create/add to Wishlist

11

1022846

NLA - Bar, Link, Black

1

N/A

Create/add to Wishlist

12

1022874

Bumper

1

$8.00

Create/add to Wishlist

13

1030979

Screw, Phillips Pan Head Tap (#10-32 x 3/4")

1

$10.00

Create/add to Wishlist

14

1023092

NLA - Legrest Support Tube Assembly, Hemi, Chrome - Right

1

N/A

Create/add to Wishlist

14

1023093

NLA - Legrest Support Tube Assembly, Hemi, Chrome - Left

1

N/A

Create/add to Wishlist

15

1027097

Plug Button, Black (3/4")

1

$7.50

Create/add to Wishlist

16

1022854

NLA - Screw, Shoulder Slotted Head (1/2 x 1-1/8", 3/8-16)

1

N/A

Create/add to Wishlist

17

1014807

Screw, Hex Head (5/16-24 x 3-1/4")

1

$10.00

Create/add to Wishlist

18

1091220

Spacer, Legrest

1

$10.00

Create/add to Wishlist

19

48823X008

Spring, Leaf

1

$9.00

Create/add to Wishlist

20

47328X003

Bushing, Pivot (5/16 x 7/16 x 7/8")

1

$10.00

Create/add to Wishlist

21

47330X003

Spacer (5/16 x 1/2 x 3/8")

1

$10.00

Create/add to Wishlist

22

10261X000

Nut, Acorn (5/16-24)

1

$10.00

Create/add to Wishlist

23

42326X004

Bar, Ratchet - Right/Left

1

$8.00

Create/add to Wishlist

24

04528X002

Bracket, Release, Black

1

$8.00

Create/add to Wishlist

25

1040060

Tip, Plastic, Black

1

$8.00

Create/add to Wishlist

26

1037125

Cam, Legrest

1

$8.00

Create/add to Wishlist

27

1037485

Spring, Release

1

$8.00

Create/add to Wishlist

28

1037126

Handle, Release

1

$10.00

A

Create/add to Wishlist

29

1013519

Washer, Nylon (5/16 x 11/16 x 1/16")

1

$10.00

Create/add to Wishlist

30

1040831

Ring, Snap

1

$8.00

Create/add to Wishlist

31

1024911

NLA - Decal, Smartleg

1

N/A

Create/add to Wishlist

32

1123935

Tube, Support and Drive Link, Chrome - Right

1

Create/add to Wishlist

32

1123936

Tube, Support and Drive Link, Chrome - Left

1

Create/add to Wishlist

33

1022864

Drive, Link, Black

1

Create/add to Wishlist

34

1046329

Kit, Elevating Legrest Ratchet Hardware (Pair)

2

1

$98.00

B

Create/add to Wishlist

35

See Chart

Added to Cart

Prior Model Number		Current Model Number		Chair Width		Right Side		Left Side
AHL4		AHL4		16-22"		Note-A 1041799 MSRP: $196.00		Note-A 1041800 MSRP: $196.00

Create/add to Wishlist

See chart-note

Chart Part Notes

Chart Code	Definition
A	Calf pad is sold separately and is not included in support assemblies after 7/97.

Legrest Support Assembly - AHS4, AHL4

N/A

C

Note Code	Definition
A	Due to design change, all chairs manufactured prior to 10/1/00, it is suggested that release handles be replaced in pairs.
B	Includes Items 21 thru 30.
C	Includes items 1 thru 34.

Maximum of three products are allowed for comparison.

Maximum of three products are allowed for comparison.

Maximum of three products are allowed for comparison.

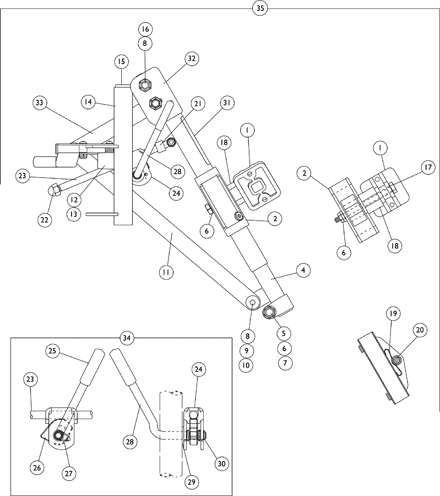

Front Riggings - Legrest Supports - AHS4, AHL4
