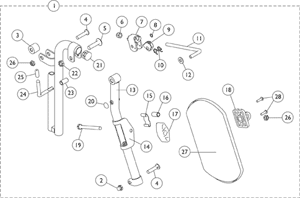

Front Riggings - Legrest Support Assembly - TR12

Item	Part/Kit	Part/Kit Description	Qty/Pkg	Qty/Asbly	MSRP	View Parts Notes
1	1041818	NLA - Legrest Support Assembly, Chrome - Right	1	1	N/A	A	Create/add to Wishlist Create/add to Wishlist New Wishlist Description
1	1041819	NLA - Legrest Support Assembly, Chrome - Left	1	1	N/A	A	Create/add to Wishlist Create/add to Wishlist New Wishlist Description
2	1107321	Nut, Low Cap (5/16"-24)	1	1	$10.00		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
3	47324X011	Bushing, Pivot (5/16 x 7/8 x 3/4")	1	1			Create/add to Wishlist Create/add to Wishlist New Wishlist Description
4	11232X009	Bolt, Lug (5/16-24 x 1-3/8")	1	2	$10.00		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
5	11919X000	NLA - Screw, Slotted Truss Head (3/8-16 x 1-1/2")	1	1	N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
6	10261X000	Nut, Acorn (5/16-24)	1	1	$10.00		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
7	04528X002	Bracket, Release, Black	1	1	$8.00		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
8	1040831	Ring, Snap	1	1	$8.00		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
9	1037125	Cam, Legrest	1	1	$8.00		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
10	1037485	Spring, Release	1	1	$8.00		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
11	1037126	Handle, Release	1	1	$10.00		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
12	1013519	Washer, Nylon (5/16 x 11/16 x 1/16")	1	1	$10.00		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
13	04526X040	NLA - Tube, Elevating Support, Chrome - Right	1	1	N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
13	04526X041	NLA - Tube, Elevating Support, Chrome - Left	1	1	N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
14	1025104	Bracket, Legrest, Chrome	1	1	$16.00		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
15	48823X008	Spring, Leaf	1	1	$9.00		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
16	47328X003	Bushing, Pivot (5/16 x 7/16 x 7/8")	1	1	$10.00		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
17	1091220	Spacer, Legrest	1	1	$10.00		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
18	04526X019	Plate, Legrest Pad	1	1	$9.00		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
19	1014807	Screw, Hex Head (5/16-24 x 3-1/4")	1	1	$10.00		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
20	1096773	Nut, Push Dome (5/16")	1	1	$10.00		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
21	1027095	Plug Button, Black (7/8")	1	1	$9.20		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
22	40363X000	Hex Nut (3/8"-16)	1	1	$10.00		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
23	1009959	NLA - Support, Legrest w/ Release Handle - Right	1	1	N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
23	1009960	NLA - Support, Legrest w/ Release Handle - Left	1	1	N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
24	42326X001	Bar, Ratchet	1	1	$8.00		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
25	1040060	Tip, Plastic, Black	1	1	$8.00		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
26	60264X001	Locknut (5/16-24)	1	2	$8.00		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
27	1098497	Pad, Calf, Black	1	1			Create/add to Wishlist Create/add to Wishlist New Wishlist Description
	1046328	NLA - Kit, Ratchet	2	1	N/A	B ,C	Create/add to Wishlist Create/add to Wishlist New Wishlist Description

Assembly Part Notes

Note Code	Definition
A	Includes items 2-26.
B	Includes items 6-12, 24-25
C	Not shown.

Catalog Literature

Parts Books for Tracer® / Tracer® IV (Before 10/1/03) Tracer® Transport Tracer® LX & LX Recliner Tracer® Plus / Tracer® LT
