Accessories - Shopping Basket

Print this page

Shopping Basket

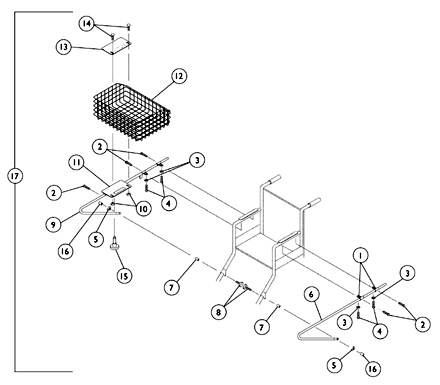

Click to Enlarge

Item	Part/Kit	Part/Kit Description	Qty/Pkg	Qty/Asbly	MSRP	View Parts Notes
1	1021835	NLA - Bar, Slide Tube Support	1	4	N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
2	21243X000	NLA - Screw, Phillips Pan Head (#6-20 x 3/8")	1	5	N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
3	1013218	Washer (#10 Flat)	1	4	$9.00		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
4	11010X002	NLA - Screw, Phillips Round Head (#10-32 x 1-5/8")	1	4	N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
5	1107321	Nut, Low Cap (5/16"-24)	1	2	$10.00		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
6	1021764	NLA - Bracket, Support, Chrome - Left	1	1	N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
7	47330X003	Spacer (5/16 x 1/2 x 3/8")	1	2	$10.00		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
8	11240X000	NLA - Screw, Hex Head (5/16-24 x 2")	1	2	N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
9	1021765	NLA - Bracket, Support, Chrome - Right	1	2	N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
10	16721X000	Locknut (1/4-20)	1	2	$10.00		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
11	1021763	NLA - Plate, Pivot with Tube, Bottom	1	1	N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
12	1037615	NLA - Basket	1	1	N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
13	1021904	NLA - Plate, PIvot, Top	1	1	N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
14	10123X006	Bolt, Carriage (1/4-20 x 3/4")	1	2	$8.00		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
15	06807X002	NLA - Plunger, Pin	1	1	N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
16	1001634	NLA - Cap, End, Protective, Black	1	2	N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
17	1042418	NLA - Basket, Shopping w/ Hardware	1	1	N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
	1021912	NLA - Instruction Sheet	1	1	N/A	A	Create/add to Wishlist Create/add to Wishlist New Wishlist Description

Assembly Part Notes

Note Code	Definition
A	Not Shown

Catalog Literature

Parts Books for Tracer® / Tracer® IV (Before 10/1/03) Tracer® Transport Tracer® LX & LX Recliner Tracer® Plus / Tracer® LT
