Rehab Shower/Commode Chair - Crossbraces, Footrest - Model 6490, 6690, 6492, 6692, 6495 and 6695

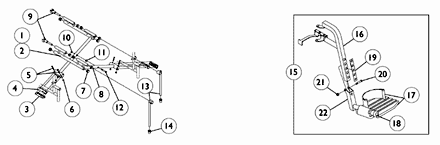

Item | Part/Kit | Part/Kit Description | Qty/Pkg | Qty/Asbly | MSRP | View Parts Notes | |
---|---|---|---|---|---|---|---|
1 | 1028041 | NLA - Crossbrace Assembly | 1 | 1 | N/A | A ,C |
Create/add to WishlistCreate/add to Wishlist |
2 | 1023558 | NLA - Crossbrace Assembly - Right | 1 | 1 | N/A | B |
Create/add to WishlistCreate/add to Wishlist |
2 | 1023559 | NLA - Crossbrace Assembly - Left | 1 | 1 | N/A | B |
Create/add to WishlistCreate/add to Wishlist |
2 | 1028038 | NLA - Crossbrace Assembly - Right | 1 | 1 | N/A | C |
Create/add to WishlistCreate/add to Wishlist |
2 | 1028039 | NLA - Crossbrace Assembly - Left | 1 | 1 | N/A | C |
Create/add to WishlistCreate/add to Wishlist |
3 | 1012172 | NLA - Clamp, Saddle | 1 | 2 | N/A |
Create/add to WishlistCreate/add to Wishlist |
|
4 | 1023560 | Insert, Guide Tube, Black (3-3/4" Long) | 1 | 2 |
$8.00 |
Create/add to WishlistCreate/add to Wishlist |
|
5 | 1008495 | Screw, Socket Button Head (1/4-20 x 1-1/2") | 1 | 4 |
$10.00 |
Create/add to WishlistCreate/add to Wishlist |
|
6 | 1023521 | NLA - Locknut, Hex (1/4-20) | 1 | 4 | N/A |
Create/add to WishlistCreate/add to Wishlist |
|
7 | 1057287 | Plug Button, Grey (1") | 1 | 4 |
$9.00 |
Create/add to WishlistCreate/add to Wishlist |
|
8 | 1040840 | NLA - Plug Button, Grey (7/8") | 1 | 6 | N/A |
Create/add to WishlistCreate/add to Wishlist |
|
9 | 1025197 | NLA - Guide, Rear Seat | 1 | 2 | N/A |
Create/add to WishlistCreate/add to Wishlist |
|
10 | 1021383 | NLA - Locknut, Hex (5/16-18) | 1 | 1 | N/A |
Create/add to WishlistCreate/add to Wishlist |
|
11 | 1008882 | Locknut (1/4-20) | 1 | 1 |
$8.00 |
Create/add to WishlistCreate/add to Wishlist |
|
12 | 90162X000 | NLA - Screw, Hex Head (5/16-18 x 2-1/2") | 1 | 1 | N/A |
Create/add to WishlistCreate/add to Wishlist |
|
13 | 1017064 | NLA - Guide, Front Seat | 1 | 2 | N/A |
Create/add to WishlistCreate/add to Wishlist |
|
14 | 40186X017 | NLA - Tube, Insert | 1 | 2 | N/A |
Create/add to WishlistCreate/add to Wishlist |
|
15 | 1026250 | NLA - Footrest Assembly - Right | 1 | 1 | N/A |
Create/add to WishlistCreate/add to Wishlist |
|
15 | 1026249 | NLA - Footrest Assembly - Left | 1 | 1 | N/A |
Create/add to WishlistCreate/add to Wishlist |
|
16 | 1017071 | Tube, Footrest Support, Navy Blue - Right | 1 | 1 | D |
Create/add to WishlistCreate/add to Wishlist |
|
16 | 1017072 | Tube, Footrest Support, Navy Blue - Left | 1 | 1 | D |
Create/add to WishlistCreate/add to Wishlist |
|
17 | 1021426 | NLA - Footplate with Heel Loop Assembly - Right | 1 | 1 | N/A | E |
Create/add to WishlistCreate/add to Wishlist |
17 | 1021427 | NLA - Footplate with Heel Loop Assembly - Left | 1 | 1 | N/A | E |
Create/add to WishlistCreate/add to Wishlist |
18 | 40186X019 | NLA - Tube, End Cap | 1 | 1 | N/A |
Create/add to WishlistCreate/add to Wishlist |
|
19 | 1017091 | NLA - Bushing, Strip | 1 | 1 | N/A | E |
Create/add to WishlistCreate/add to Wishlist |
20 | 1023968 | NLA - Screw, Socket Button Head (1/4-20 x 1-7/16") | 1 | 2 | N/A |
Create/add to WishlistCreate/add to Wishlist |
|
21 | 1025736 | Locknut (1/4-20) | 1 | 1 |
$7.20 |
Create/add to WishlistCreate/add to Wishlist |
|
22 | 1017075 | NLA - Tube, Pivot | 1 | 2 | N/A |
Create/add to WishlistCreate/add to Wishlist |
|
23 | 1101096 | NLA - Release Handle - Right | 1 | 1 | N/A | E |
Create/add to WishlistCreate/add to Wishlist |
23 | 1101097 | NLA - Release Handle - Left | 1 | 1 | N/A | E |
Create/add to WishlistCreate/add to Wishlist |
Assembly Part Notes
Note Code | Definition |
---|---|
A | Includes Crossbraces and items 7, 8 and 10-12. |
B | For models 6490, 6492 and 6495. |
C | For models 6690, 6692 and 6695. |
D | After 2/20/95. |
E | Individual items no longer available, the entire assembly must be ordered item #15. |
