Seats - Captain (Before 11/1/01)

Print this page

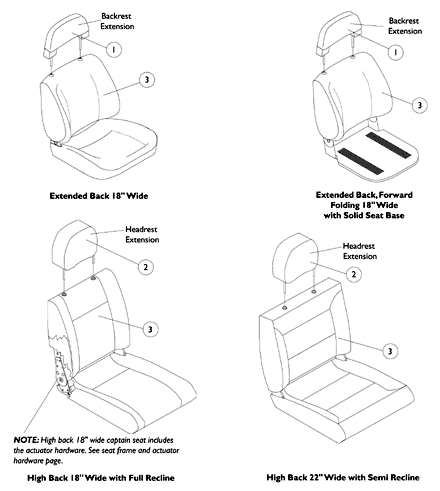

Captain Seat Assembly Before 11/01/01

Click to Enlarge

Item

Part/Kit

Part/Kit Description

Qty/Pkg

Qty/Asbly

MSRP

View Parts Notes

See Chart

Added to Cart

Item Number		Backrest/Headrest Extensions and Captain Seat Assemblies		Grey Fabric Vinyl		All Grey Vinyl		Brunswick Buff All Tan Vinyl
1.		Backrest, Extended Back		Note-A 1090374- NLA		Note-A 1090375- NLA		1090376- NLA
1.		Backrest, Extended Back Forward Folding		Note-A 1090374- NLA		N/A		N/A
2.		Headrest, High Back (18 and 22" W)		Note-A 1090379- NLA		Note-A 1090380- NLA		N/A
3.		18" W Extended Back		Note-C 1090371- NLA		Note-C 1090372- NLA		Note-C 1090373- NLA
3.		18" W Extended Back Forward Folding		Note-C 1090370- NLA		N/A		N/A
3.		18" W High Back w/ Full Recline		Note-B ,C 1091068- NLA		Note-C 1091069- NLA		N/A
3.		22" W High Back w/ Semi Recline		1098287- NLA		N/A		N/A

Create/add to Wishlist

Create/add to Wishlist

See chart-note

Chart Part Notes

Chart Code	Definition
B	High back 18" wide captain seat includes all actuator attaching hardware
C	For captain seats marked NLA, use captain seats dated after 10/31/01
A	4-3/4" Backrest/Headrest Post Spacing

Captain Seat Assembly

N/A

N/A

N/A

Catalog Literature

Parts Books for Storm Series® 3G (Elevating Seat included ESS6-STM)
