Main Lift Assembly

Print this page

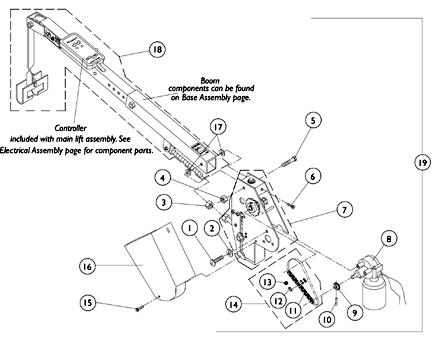

Main Lift Assembly

Click to Enlarge

Item	Part/Kit	Part/Kit Description	Qty/Pkg	Qty/Asbly	MSRP	View Parts Notes
1	AP101600	NLA - Screw, Socket Head (1/4-28 x 3/4")	1	3	N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
2	AP100907	NLA - Washer, Flat (1/4 x 3/4 x 1/16")	1	3	N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
3	AP101017	NLA - Jam Nut (1/2-13)	1	1	N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
4	AP100562	NLA - Locknut (3/8-16)	1	1	N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
5	AP100556	NLA - Screw, Hex Head (3/8-16 x 2-1/2")	1	1	N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
6	AP101599	NLA - Screw, Phillips Pan Head (#10-24 x 3/8")	1	1	N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
7	AP072750	NLA - Drive Assembly	1	1	N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
8	AP072331	NLA - Motor, Lift	1	1	N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
9	AP072320	NLA - Sprocket, Motor	1	1	N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
10	AP101023	NLA - Pin, Roll (3/16 x 1")	1	1	N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
11	AP072343	NLA - Chain, Lift 35	1	1	N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
12	AP140989	NLA - Connector, Link	1	1	N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
13	AP140961	NLA - Connector, Link Offset	1	1	N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
14	AP072311	NLA - Chain and Connector Link Assembly	1	1	N/A	A	Create/add to Wishlist Create/add to Wishlist New Wishlist Description
15	AP101514	NLA - Screw, Phillips Pan Head (#10-24 x 2")	1	1	N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
16	AP072361	NLA - Guard, Chain	1	1	N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
17	AP101605	NLA - Washer, Plastic (7/16 x 11/16 x 5/16")	1	2	N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
18	AP072751	NLA - Boom Assembly w/ Decals, Less Controller	1	1	N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
19	AP072397	NLA - Main Lift Assembly w/ Decals	1	1	N/A	B	Create/add to Wishlist Create/add to Wishlist New Wishlist Description

Assembly Part Notes

Note Code	Definition
A	Includes items 11-13
B	Includes items 1-18

Catalog Literature

Parts Books for Phoenix Mobility Lifts
