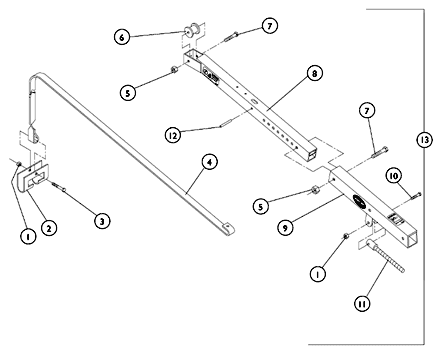

Boom Assembly

Print this page

Click to Enlarge

Item	Part/Kit	Part/Kit Description	Qty/Pkg	Qty/Asbly	MSRP	View Parts Notes
1	AP100562	NLA - Locknut (3/8-16)	1	2	N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
2	AP072304	NLA - Hook, Pickup Claw Lift	1	1	N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
3	AP100561	NLA - Screw, Hex Head (3/8-16 x 1-3/4")	1	1	N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
4	AP072329	NLA - Lift, Strap	1	1	N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
5	AP100627	NLA - Locknut (5/16-18 x 2-1/4")	1	2	N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
6	AP072306	NLA - Spool, Guide	1	1	N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
7	AP100879	NLA - Screw, Hex Head (5/16-18 x 2-1/4")	1	2	N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
8	AP072305	NLA - Boom, Inner	1	1	N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
9	AP072373	NLA - Boom, Outer	1	1			Create/add to Wishlist Create/add to Wishlist New Wishlist Description
10	AP100883	NLA - Screw, Hex Head (3/8-16 x 1-1/2")	1	1	N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
11	AP072330	NLA - Rod, Height Adjustment	1	1	N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
12	AP101775	NLA - Pin, Roll, Slotted 1/4" Long	1	1	N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
13	AP072751	NLA - Boom Assembly w/ Decals, Less Controller	1	1	N/A	A	Create/add to Wishlist Create/add to Wishlist New Wishlist Description

Assembly Part Notes

Note Code	Definition
A	Includes items 1-12
