Base Assembly with Adjustable Legs

Print this page

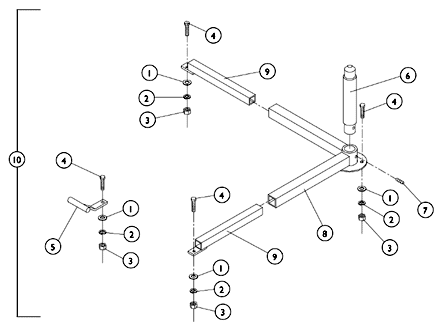

Base Assembly with Adjustable Legs

Click to Enlarge

Item	Part/Kit	Part/Kit Description	Qty/Pkg	Qty/Asbly	MSRP	View Parts Notes
1	AP100632	NLA - Washer, Flat (5/16 x 7/8 x 5/64")	1	4	N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
2	AP100838	NLA - Lockwasher (5/16 x 19/32 x 3/32")	1	4	N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
3	AP100619	NLA - Hex Nut (5/16-18)	1	4	N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
4	AP100581	NLA - Screw, Hex Head (5/16-18 x 1-1/2")	1	4	N/A	A	Create/add to Wishlist Create/add to Wishlist New Wishlist Description
4	AP100879	NLA - Screw, Hex Head (5/16-18 x 2-1/4")	1	4	N/A	A	Create/add to Wishlist Create/add to Wishlist New Wishlist Description
4	AP100584	NLA - Screw, Hex Head (5/16-18 x 3")	1	4	N/A	A	Create/add to Wishlist Create/add to Wishlist New Wishlist Description
5	AP072355	NLA - Anchor, Hold Down	1	1	N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
6	AP072752	NLA - Bearing Rod Assembly, Standard (6")	1	1	N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
6	AP072477	NLA - Bearing Rod Assembly, Opt (9")	1	1	N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
7	AP100682	NLA - Screw, Socket Set (5/16-18 x 3/8")	1	1	N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
8	AP072333	NLA - Leg, Stand Van	1	1	N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
9	AP072309	NLA - Leg, Inner	1	2	N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
10	AP072375	NLA - Base Assembly w/ Adjustable Legs	1	1	N/A	B	Create/add to Wishlist Create/add to Wishlist New Wishlist Description

Assembly Part Notes

Note Code	Definition
A	The installer will choose which length screws are needed depending on the thickness of the vehicle floor the lift is mounted to.
B	Includes items 1-9.

Catalog Literature

Parts Books for Phoenix Mobility Lifts
