C-Arm and Docking Device Assembly

Print this page

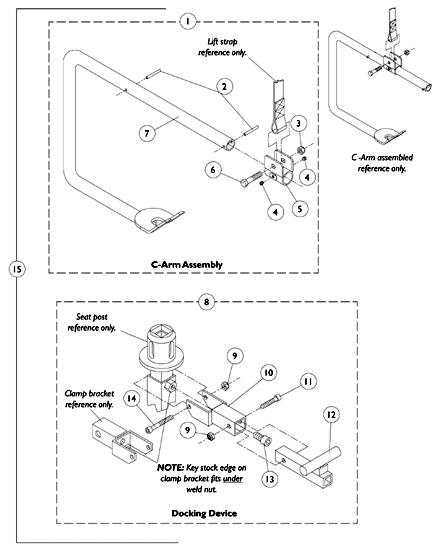

C-Arm and Docking Device Assembly

Click to Enlarge

Item	Part/Kit	Part/Kit Description	Qty/Pkg	Qty/Asbly	MSRP	View Parts Notes
1	AP072798	NLA - C-Arm Assembly	1	1	N/A	D	Create/add to Wishlist Create/add to Wishlist New Wishlist Description
2	AP100708	NLA - Pin, Roll (3/16 x 1-1/2")	1	2	N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
3	AP100562	NLA - Locknut (3/8-16)	1	1	N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
4	AP101395	NLA - Screw, Socket Set (1/4-20 x 1/4")	1	2	N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
5	AP072461	NLA - Bracket, Lift	1	1	N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
6	AP100561	NLA - Screw, Hex Head (3/8-16 x 1-3/4")	1	1	N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
7	AP072797	NLA - C-Arm - Scooter	1	1	N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
8	AP072795	NLA - Docking Device Assembly	1	1	N/A	C	Create/add to Wishlist Create/add to Wishlist New Wishlist Description
9	AP100626	NLA - Locknut (1/4-20")	1	2	N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
10	AP072793	NLA - Clamp, Bracket	1	1	N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
11	AP100902	NLA - Screw, Hex Head (1/4-20 x 1-1/4")	1	1	N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
12	AP072794	NLA - Lift Arm - Scooters	1	1	N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
13	AP101836	NLA - Screw, Socket Head (M10 x 1.25 x 20mm)	1	1	N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
14	AP101839	NLA - Screw, Socket Head (1/4-20 x 1-7/8")	1	1	N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
15	AP072799	NLA - Kit, C-Arm+ Docking Device Assembly	1	1	N/A	B	Create/add to Wishlist Create/add to Wishlist New Wishlist Description
	APOM-MV3650	NLA - Instruction Sheet, C-Arm+ Docking Device	1	1	N/A	A	Create/add to Wishlist Create/add to Wishlist New Wishlist Description

Assembly Part Notes

Note Code	Definition
A	Not Shown.
B	Includes items 1, 8 and Instruction Sheet.
C	Includes items 9-14.
D	Includes items 2-7.

Catalog Literature

Parts Books for Phoenix Mobility Lifts
