Handrim

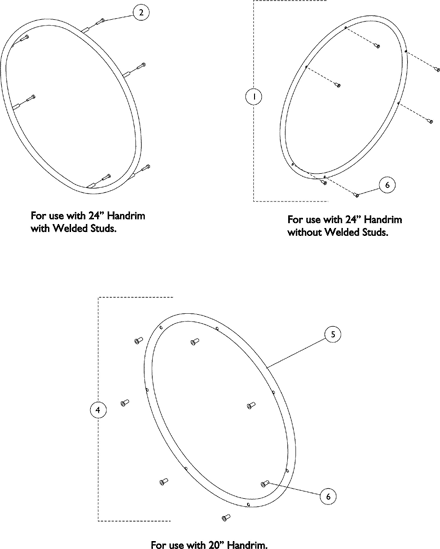

Item | Part/Kit | Part/Kit Description | Qty/Pkg | Qty/Asbly | MSRP | View Parts Notes | |
---|---|---|---|---|---|---|---|
1 | 1125209 | NLA - Handrim, Steel, 6 PT, Grey (24" Wheel) | 1 | 1 | N/A |
Create/add to WishlistCreate/add to Wishlist |
|
2 | 1026750 | NLA - Screw w/ Washer (#10-32 x 7/8") | 1 | 6 | N/A | D ,J |
Create/add to WishlistCreate/add to Wishlist |
2 | 1007375 | Screw, Phillips Pan Head w/ Patch (#10-32 x 1-3/4") | 1 | 6 |
$10.00 |
Create/add to WishlistCreate/add to Wishlist |
|
3 | 430056 | Handrims with Hardware, Chrome, 12 PT (24" Wheel) | 2 | 1 | A ,B ,F |
Create/add to WishlistCreate/add to Wishlist |
|
3 | 1125211 | NLA - Handrims with Hardware, Steel, 6 PT, Grey (24" Wheel) | 2 | 1 | N/A | G |
Create/add to WishlistCreate/add to Wishlist |
4 | 430051 | NLA - Handrims with Hardware, Chrome, 7 PT (20" Wheel) | 2 | 1 | N/A | E ,F |
Create/add to WishlistCreate/add to Wishlist |
4 | 1125213 | Handrims with Hardware, Steel, 7 PT, Grey (20" Wheel) | 2 | 1 | N/A | E ,G |
Create/add to WishlistCreate/add to Wishlist |
5 | 1019999 | Handrim, Chrome, 7 PT (20" Wheel) | 1 | 1 |
$51.00 |
F |
Create/add to WishlistCreate/add to Wishlist |
5 | 1125212 | Handrim, Steel, 7 PT, Grey (20" Wheel) | 1 | 1 | N/A | G |
Create/add to WishlistCreate/add to Wishlist |
6 | 1007375 | Screw, Phillips Pan Head w/ Patch (#10-32 x 1-3/4") | 1 | 7 |
$10.00 |
C |
Create/add to WishlistCreate/add to Wishlist |
7 | 1016438 | Spacer (1/4 x 11/32 x 15/16") | 1 | 7 |
$10.00 |
A ,C |
Create/add to WishlistCreate/add to Wishlist |
Assembly Part Notes
Note Code | Definition |
---|---|
A | Not Shown. |
B | Includes (2) Chrome Handrims, (12) Screws item #6 and (12) Spacers item #7. |
C | 20" Wheel Only. |
D | For use with 24" Wheel with Welded Stud Only. |
E | Includes items 5 and 6. |
F | Before 1/24/05. For use on chairs with "Chrome Frame Finish." |
G | After 1/23/05. For use on chairs with "Grey Frame Finish." |
H | Includes (1) Chrome Handrim and (6) Rivet Nuts. |
I | Use with 24" Handrim without Welded Stud. |
J | No Longer Available, Replace with 1007375. |
