Frames - Captain Seat Frame & Actuator Hardware (After 8/31/02)

Print this page

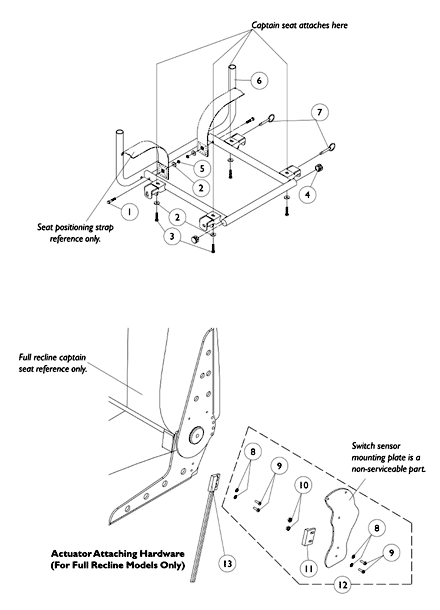

Captain Seat Frame and Actuator Hardware After 8/31/02

Click to Enlarge

Item	Part/Kit	Part/Kit Description	Qty/Pkg	Qty/Asbly	MSRP	View Parts Notes
1	1070751	NLA - Frame, Seat, Color	1	1	N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
2	1071602	NLA - Pin, Anchor (Captain Seat)	1	4	N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
3	1029501	Plug Button, Black (1")	1	2	$7.20		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
4	1025713	NLA - Screw, Hex Head (1/4-20 x 1")	1	4	N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
5	1026900	Washer (1/4 x 23/32 x 1/16")	1	6	$1.20		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
6	7930333	Locknut (1/4-20)	25	2	$44.00		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
7	1037610	Screw, Hex Head (1/4-20 x 1-5/8")	1	2	$8.00		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
8	1008525	NLA - Washer, Internal Tooth Lock (#4-40)	1	4	N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
9	7930339	NLA - Package, Screw, Phillips Pan Head (#4-40 x 3/8")	25	4	N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
10	P0870X000	Nut, Hex Keps (#4-40)	1	2	$10.00		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
11	1024001	Sensor, Actuator Switch	1	1	$21.00		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
12	1107242	NLA - Hardware, Actuator Switch Sensor Mounting	1	1	N/A	A ,B	Create/add to Wishlist Create/add to Wishlist New Wishlist Description
13	1074983	NLA - Cable, Limit Switch Sensor	1	1	N/A	B	Create/add to Wishlist Create/add to Wishlist New Wishlist Description

Assembly Part Notes

Note Code	Definition
A	Includes Item 8-11.
B	Item 12 and 13 are not included with a high back seat assembly.

Catalog Literature

Parts Books for Storm Series® Ranger II™ Excel™ R2™ jr.
