Seats - Captain (Before 9/1/02)

Print this page

Click to Enlarge

Item

Part/Kit

Part/Kit Description

Qty/Pkg

Qty/Asbly

MSRP

View Parts Notes

See Chart

Added to Cart

Extended Back Backrest (E.B.)	Grey Fabric/Vinyl	All Grey Vinyl	Brunswick Buff All Tan Vinyl
E.B. Before 3/25/98	Note-A 1071578- NLA	N/A	N/A
E.B. 3/25/98 - 8/3/99 and Forward Folding Before 5/12/00	Note-B 1078997- NLA	N/A	N/A
E.B. After 8/3/99 and Forward Folding After 5/11/00	Note-C 1090374- NLA	N/A	N/A
E.B. Before 7/22/99	N/A	Note-B 1081285- NLA	Note-B 1086109- NLA
E.B. After 7/21/99	N/A	Note-C 1090375- NLA	Note-C 1090376- NLA

Create/add to Wishlist

See chart-note

Chart Part Notes

Chart Code	Definition
A	9-29/64" Backrest Post Spacing.
B	9" Backrest Post Spacing.
C	4-3/4" Backrest/Headrest Post Spacing.

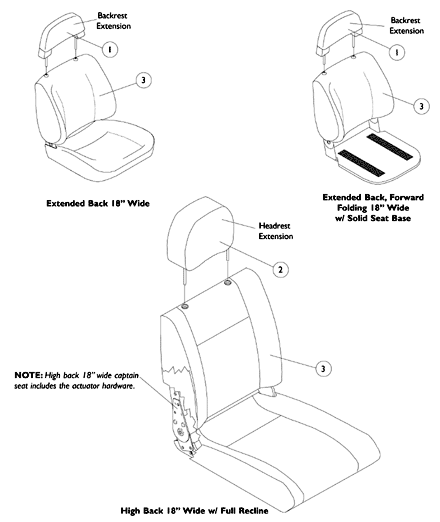

Item #1- Backrest Extended Back

N/A

See Chart

Added to Cart

Headrest	Grey Fabric/Vinyl	All Grey Vinyl	Brunswick Buff All Tan Vinyl
Headrest, High Back Before 8/16/99	Note-D 1071576- NLA	N/A	N/A
Headrest, High Back After 8/15/99	Note-C 1090379- NLA	N/A	N/A
Headrest, High Back	N/A	Note-C 1090380- NLA	N/A

Create/add to Wishlist

See chart-note

Chart Part Notes

Chart Code	Definition
C	4-3/4" Backrest/Headrest Post Spacing.
D	4-23/32" Headrest Post Spacing.

Item #2 - Headrest High Back

N/A

See Chart

Added to Cart

Captain Seat - High Back	Grey Fabric/Vinyl	All Grey Vinyl	Brunswick Buff All Tan Vinyl
18" Wide High Back Before 8/16/99	Note-F ,H 1070456- NLA	N/A	N/A
18" Wide High Back After 8/15/99	Note-F ,G ,H 1091068- NLA	N/A	N/A
18" Wide High Back	N/A	Note-F 1091069- NLA	N/A

Create/add to Wishlist

See chart-note

Chart Part Notes

Chart Code	Definition
G	Backrest/Headrest post spacing changed. When replacing seat assemblies made before the date specified, a new style backrest or headrest must be ordered as well to match.
H	High back 18" wide captain seats includes all actuator attaching hardware (LESS) the limit switch sensor harness #1074983. See page titled "Captain Seat Frame and Actuator Hardware".
F	For Captain Seats marked NLA, use Captain Seats dated after 8/31/02 as replacements.

Item #3 - 18" Wide High Back Captain Seat

N/A

See Chart

Added to Cart

Captain Seat - Extended Back	Grey Fabric/Vinyl	All Grey Vinyl	Brunswick Buff All Tan Vinyl
Before 8/4/99 w/Mounting Screws	Note-E ,F 1091123- NLA	N/A	N/A
After 8/3/99	Note-F ,G 1090371- NLA	N/A	N/A
Before 7/22/99	N/A	Note-F 1081284- NLA	Note-F 1086108- NLA
After 7/21/99	N/A	Note-F ,G 1090372- NLA	Note-F ,G 1090373- NLA
and Forward Folding Before 5/12/00	Note-F 1085104- NLA	N/A	N/A
and Forward Folding After 5/11/00	Note-F ,G 1090370- NLA	N/A	N/A

Create/add to Wishlist

See chart-note

Chart Part Notes

Chart Code	Definition
E	After 8/3/99 #1079236 extended back captain seat with mounting screws was replaced by #1091123 due to change in the backrest post spacing. New bracket head rest #1090374 must be ordered as well to match.
F	For Captain Seats marked NLA, use Captain Seats dated after 8/31/02 as replacements.
G	Backrest/Headrest post spacing changed. When replacing seat assemblies made before the date specified, a new style backrest or headrest must be ordered as well to match.

Item #3 - 18" Wide Extended Back Captain Seat

N/A
