Frames - Captain Seat & Actuator Hardware - After 8/31/02

Print this page

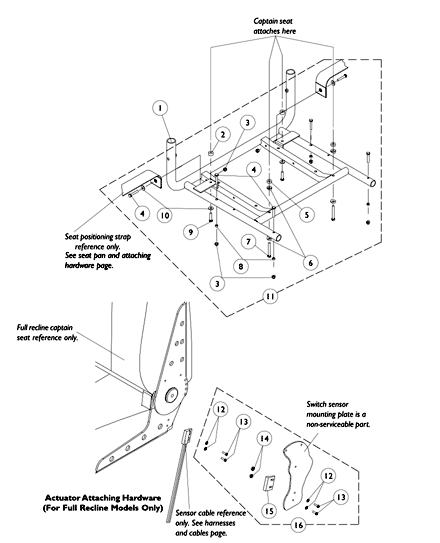

Captain Seat Frame and Actuator Hardware

Click to Enlarge

Item	Part/Kit	Part/Kit Description	Qty/Pkg	Qty/Asbly	MSRP	View Parts Notes
1	1070455	NLA - Frame, Seat, Black (18" W)	1	1	N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
1	1108099	NLA - Frame, Seat, Black (20" W)	1	1	N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
1	1101913	NLA - Frame, Seat, Black (22" W)	1	1	N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
2	1108411	NLA - Spacer (1/4 x 5/8 x 3/8")	1	2	N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
3	7930333	Locknut (1/4-20)	25	6	$44.00		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
4	1030949	Screw, Hex Head (1/4-20 x 1-1/2")	1	6			Create/add to Wishlist Create/add to Wishlist New Wishlist Description
5	1108410	Spacer (1/4 x 5/8 x 1/4")	1	2			Create/add to Wishlist Create/add to Wishlist New Wishlist Description
6	1026099	Spacer, Coved (1/4 x 11/16 x 1/2")	1	4	$8.00		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
7	1026154	NLA - Screw, Hex Head (1/4-20 x 2-1/4")	1	2	N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
8	1047449	NLA - Spacer (1/4 x 3/8 x 3/16")	1	4	N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
9	1021406	Screw, Hex Head (1/4-20 x 1-1/4")	1	2	$10.00		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
10	1026900	Washer (1/4 x 23/32 x 1/16")	1	4	$1.20		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
11	1079208	NLA - Hardware, Captain Seat Mounting	1	1	N/A	B	Create/add to Wishlist Create/add to Wishlist New Wishlist Description
12	1008525	NLA - Washer, Internal Tooth Lock (#4-40)	1	4	N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
13	7930339	NLA - Package, Screw, Phillips Pan Head (#4-40 x 3/8")	25	4	N/A		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
14	P0870X000	Nut, Hex Keps (#4-40)	1	2	$10.00		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
15	1024001	Sensor, Actuator Switch	1	1	$21.00		Create/add to Wishlist Create/add to Wishlist New Wishlist Description
16	1107242	NLA - Hardware, Actuator Switch Sensor Mounting	1	1	N/A	A	Create/add to Wishlist Create/add to Wishlist New Wishlist Description

Assembly Part Notes

Note Code	Definition
A	Includes items 12-15.
B	Includes items 2-10.

Catalog Literature

Parts Books for Storm Series® 2G
